Connecting module TP1 8 channels and 2x2 terminals for potential supply type: screw-type term. without LED. pack. unit = 1 piece 16-pin IDC connection for cable

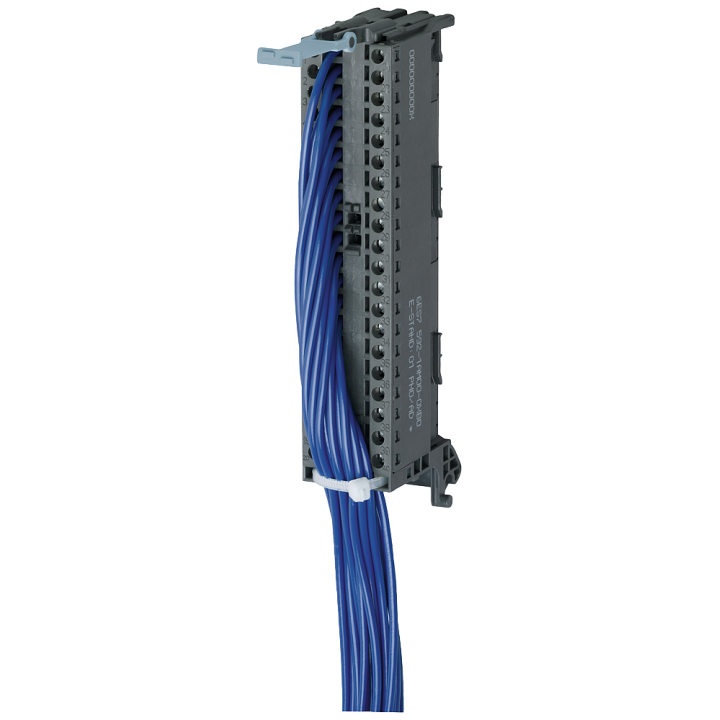

Front conn. f. SIMATIC S7-1500 40-pin (6ES7592-1AM00-0XB0) w. 20 single cores 0.5 mm2 (1-20) core-type H05V-K screw-type version L = 8.0 m
SIMATIC S7-1500. ANALOG OUTPUT MODULE AQ 4 X U/I HF. 16 BITS OF RESOLUTION. ACCURACY 0.1%. 4 CHANNELS IN GROUPS OF 1; COMMON MODE VOLTAGE: 30V AC/60V DC. DIAGNOSIS. SUBSTITUTE VALUE ISOCHRONE MODE. INCL. INFEED ELEMENT. SHIELD CLAMP AND SHIELD TERMINAL
Connecting cable unshielded f. SIMATIC S7-300/1500 0.14 mm2 bw. front conn. mod. 4x16pole and connect. module 1x50 pole with IDC connectors. length = 1.0 m
